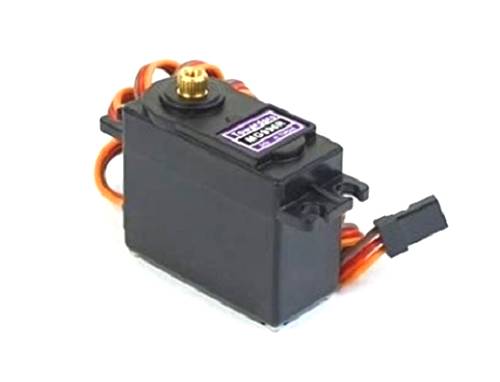

MG996R Servo Motor

The MG996R is a metal gear servo motor with a maximum stall torque of 11 kg/cm. Like other RC servos the motor rotates from 0 to 180 degree based on the duty cycle of the PWM wave supplied to its signal pin.

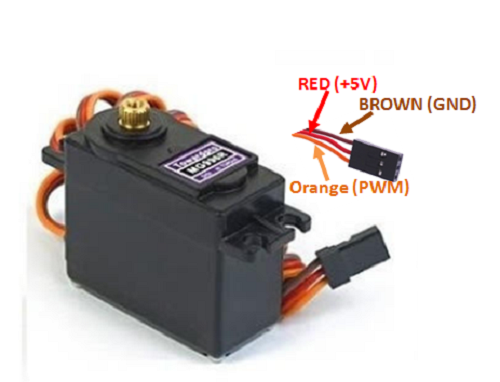

Wire Configuration

Wire Number

Wire Colour

Description

1

Brown

Ground wire connected to the ground of system

2

Red

Powers the motor typically +5V is used

3

Orange

PWM signal is given in through this wire to drive the motor



MG996R Servo Motor Features

  • Operating Voltage is +5V typically
  • Current: 2.5A (6V)
  • Stall Torque: 9.4 kg/cm (at 4.8V)
  • Maximum Stall Torque: 11 kg/cm (6V)
  • Operating speed is 0.17 s/60°
  • Gear Type: Metal
  • Rotation : 0°-180°
  • Weight of motor : 55gm
  • Package includes gear horns and screws



Alternative Servo Motors

MG90S Metal Gear, MG995 High Torque Metal Gear, VTS-08A Analog Servo



Selecting your Servo Motor

There are lots of servo motors available in the market and each one has its own specialty and applications. The following two paragraphs will help you identify the right type of servo motor for your project/system.

Most of the hobby Servo motors operates from 4.8V to 6.5V, the higher the voltage higher the torque we can achieve, but most commonly they are operated at +5V.  Almost all hobby servo motors can rotate only from 0° to 180° due to their gear arrangement so make sure your project can live with the half circle if no, you can prefer for a 0° to 360° motor or modify the motor to make a full circle. The gears in the motors are easily subjected to wear and tear, so if your application requires stronger and long running motors you can go with metal gears or just stick with normal plastic gear.

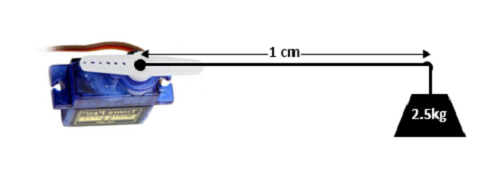

Next comes the most important parameter, which is the torque at which the motor operates. Again there are many choices here but let us assume the one with 2.5kg/cm torque which comes with the MG996R Motor. This 2.5kg/cm torque means that the motor can pull a weight of 2.5kg when it is suspended at a distance of 1cm. So if you suspend the load at 0.5cm then the motor can pull a load of 5kg similarly if you suspend the load at 2cm then can pull only 1.25. Based on the load which you use in the project you can select the motor with proper torque. The below picture will illustrate the same.




How to use a Servo Motor

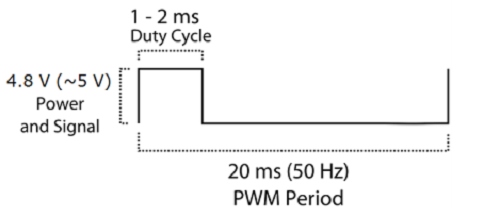

After selecting the right Servo motor for the project, comes the question how to use it. As we know there are three wires coming out of this motor. The description of the same is given on top of this page. To make this motor rotate, we have to power the motor with +5V using the Red and Brown wire and send PWM signals to the Orange colour wire. Hence we need something that could generate PWM signals to make this motor work, this something could be anything like a 555 Timer or other Microcontroller platforms like Arduino, PIC, ARM or even a microprocessor like Raspberry Pi. Now, how to control the direction of the motor? To understand that let us a look at the picture given in the datasheet.




From the picture we can understand that the PWM signal produced should have a frequency of 50Hz that is the PWM period should be 20ms. Out of which the On-Time can vary from 1ms to 2ms. So when the on-time is 1ms the motor will be in 0° and when 1.5ms the motor will be 90°, similarly when it is 2ms it will be 180°. So, by varying the on-time from 1ms to 2ms the motor can be controlled from 0° to 180°



Applications

  • Used as actuators in many robots like Biped Robot, Hexapod, robotic arm etc..
  • Commonly used for steering system in RC toys
  • Robots where position control is required without feedback
  • Less weight hence used in multi DOF robots like humanoid robots

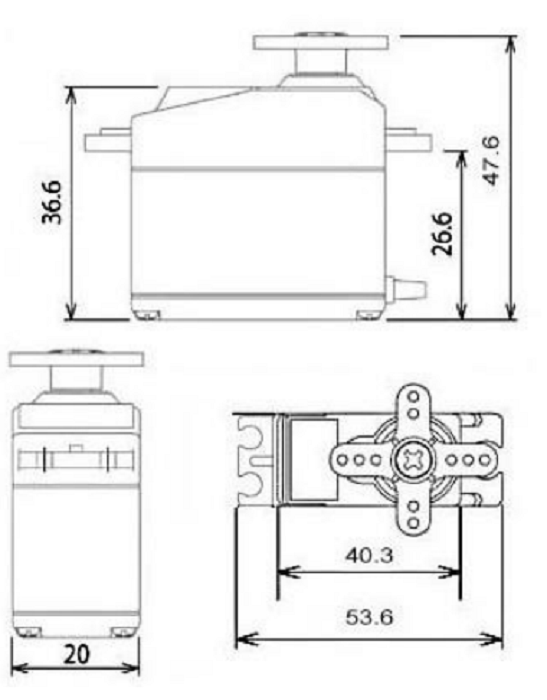

MG996R Servo Motor Dimensions

MG996R Servo Motor 2-D Model

Component Datasheet
