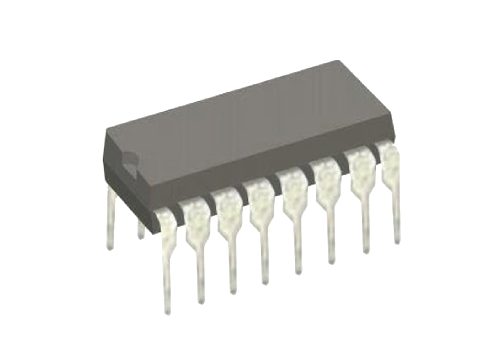

TL084CN Quad Op-Amp with JFET Inputs

TL084 is a JFET input Op-Amp with high input impedance and low offset current and offset voltage making it ideal of amplifier applications. The Op-Amp is very similar to TL074 but has high noise immunity and better offset characteristics.

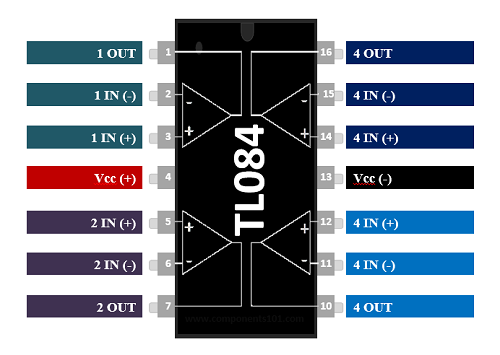

Pin Configuration

Pin Number

Pin Name



Op-Amp Output Pins

These are the output pins of the four Op-Amps


Input Inverting Pins

These are the input inverting pins of the four Op-Amps


Input Non-Inverting Pins

These are the input non-inverting pins of the four Op-Amps


Vcc (+)

Positive Supply Rail of the Op-Amp


Vcc (-)

Negative Supply Rail of the Op-Amp



  • JFET Input Op-Amp Quad Package
  • Typical Operating Voltage: +18V to -18V
  • Minimum Operating Voltage: 7V
  • Input Bias Current: 20pA
  • Input Offset Voltage: 3mV
  • Common mode Rejection Ratio CMRR: 86dB
  • Gain: 200 V/mV
  • Bandwidth: 4MHz
  • Output Short circuit protection
  • Available in 14-pin PDIP, SO-14, TSSOP packages


Note: Complete Technical Details can be found at the TL084 datasheet given at the end of this page.


TL084 Equivalent



Alternatives JFET Op-Amps

LF353N, TL072


Where to use TL084 Op Amp

The TL084 is a Quad Package Operational Amplifier, meaning it has four Op-Amps inside it and each Op-Amp can be used independently.

The main distinguishing feature of the TL084 Op-Amp is that they incorporate high-voltage JFET and bipolar transistors which helps the transistor to have very high input impedance and low bias current. Also this Op-Amp has low noise and harmonic distortion making it an ideal choice for audio pre-amplifiers. So if you are looking for an Op-Amp IC with Quad package and JFET driven then this IC might be the right choice for you.


How to use TL084 Op-Amp

TL084 Op amp is very similar to the LM324 Op-Amp, they both have four Op-Amps inside them and have the exact same pinouts.  The TL084 however is not meant for common 5V operation as it requires a minimum of 7V to operate. So Unlike LM324 or other op-amps,  if you are using the Op-Amp in single supply mode, make sure you provide a minimum of 7V for the Op-Amp to function normally.

If you are curious to learn about few basic application circuits of this IC then you can read through how LM324 is used since both the IC shares the same applications.


Op-Amp Design Considerations

The Op-Amps as we know are the work horse for most electronics circuit designs. There are a plethora of application circuits for Op-Amp each having its characteristics and significance in its own way. But every Op-Amp designs will have some common design considerations or tips which are common among them and we will discuss the same further.

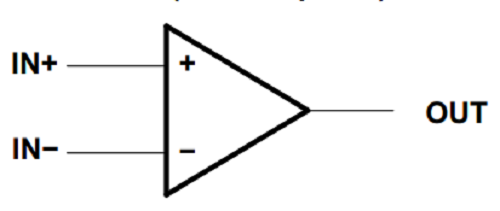

Image 1


Inputs: Op-Amps are known for its high input impedance, meaning it will not draw any current (or disturb) the signal that is being given to the Input pin. The input stage of an Op-Amp is mostly complex since it involves many stages. The Input common-mode range value must be considered while supplying voltage signals because the input voltage should never exceed the rail voltage else it will create a latch-up condition which in return will create a short circuit of the supply voltage and thus damaging the circuit permanently. Also the difference between the voltage values of the Inverting and the Non-Inverting pin should not be more than the Differential Input Voltage Rating.

Output: The TL084 is not a rail to rail Op-Amp hence the output voltage will not reach the maximum positive or maximum negative voltage when saturated. It will always be ~2V less than the supply voltage, this voltage drop occurs because of the Vce voltage drop of the transistors present inside the Op-Amp. Also remember that a saturated Op-Amp will comparatively draw more current and thus results in power loss.

Gain/Feedback: Op-Amps are known for their very large Open-Loop Gain, but sadly this gain is accompanied by noise hence most of the circuits are designed using Closed-Loop. A Closed-Loop system provides feedback to the input this limiting the gain value of the Op-Amp and the noise associated with it. A Negative feedback is commonly preferred, since it has predictable behaviour and stable operation.


Terminating Unused Op-Amp pins

For ICs like TL084 that has a Quad Op-Amp style package, often there is a good chance that the design does not utilize all the available four Op-Amps. In that case it is very important to terminate the unused Op-Amp properly. Else, the unused pins will develop some stay capacitance which might pick up noise and affect the performance, also non terminated Op-Amps will consume more power thus decreasing the efficiency of the design. There are many ways to terminate an Op-Amp based on your design, but the most common used method is shown below.

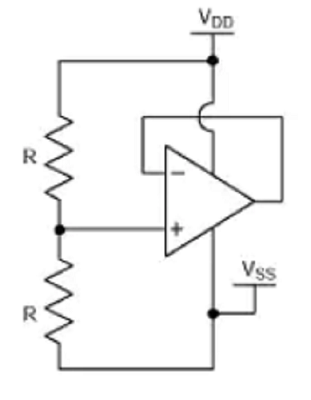

Here the Op-Amp is operating between the voltage range Vdd and Vss. To terminate the Op-Amp the Inverting pin of the Op-Amp is connected to the Output pin and the Non-Inverting pin is provided with a constant voltage source. This constant voltage could be of any value but must be within the limits of supply voltage (Common mode Voltage Range).  Hence it is not mandatory to have these two resistors since any available voltage of that particular range from the circuit can be used to terminate the Non-Inverting pin of the Op-Amp.



  • Circuit requiring high input impedance
  • Amplifier Circuits
  • Buffer application
  • Audio pre-amplification
  • Multi-stage Voltage generators
  • Audio/noise filter circuits


2D Model (CDIP)

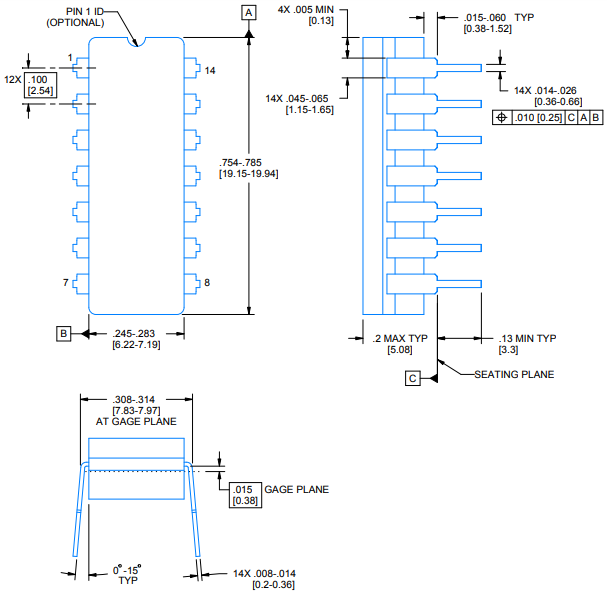

TL084 JFET Op-Amp 2-D Model
