Raspberry Pi 3

RASPBERRY PI 3 is a development board in PI series. It can be considered as a single board computer that works on LINUX operating system. The board not only has tons of features it also has terrific processing speed making it suitable for advanced applications. PI board is specifically designed for hobbyist and engineers who are interested in LINUX systems and IoT (Internet of Things).

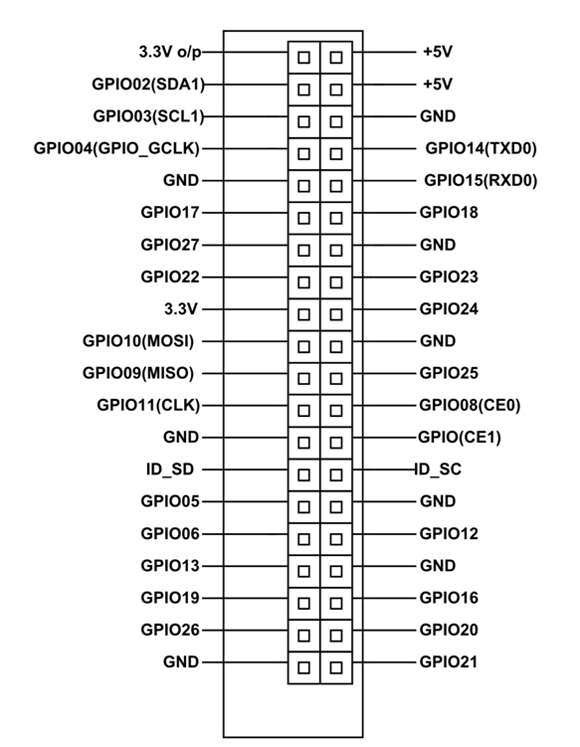

Raspberry Pi-3 Pin Configuration

PIN GROUP	PIN NAME	DESCRIPTION
POWER SOURCE	+5V, +3.3V, GND and Vin	+5V -power output +3.3V -power output GND – GROUND pin
COMMUNICATION INTERFACE	UART Interface(RXD, TXD)  [(GPIO15,GPIO14)]	UART (Universal Asynchronous Receiver Transmitter) used for interfacing sensors and other devices.
SPI Interface(MOSI, MISO, CLK,CE) x 2                          [SPI0-(GPIO10 ,GPIO9, GPIO11 ,GPIO8)] [SPI1--(GPIO20 ,GPIO19, GPIO21 ,GPIO7)]	SPI (Serial Peripheral Interface) used for communicating with other boards or peripherals.
TWI Interface(SDA, SCL) x 2                [(GPIO2, GPIO3)] [(ID_SD,ID_SC)]	TWI (Two Wire Interface) Interface can be used to connect peripherals.
INPUT OUTPUT PINS	26 I/O	Although these some pins have multiple functionsthey can be considered as I/O pins.
PWM	Hardware PWM available on GPIO12, GPIO13, GPIO18, GPIO19	These 4 channels can provide PWM (Pulse Width Modulation) outputs. *Software PWM available on all pins
EXTERNAL INTERRUPTS	All I/O	In the board all I/O pins can be used as Interrupts.



Raspberry Pi 3 Technical Specifications

Microprocessor	Broadcom BCM2837 64bit Quad Core Processor
Processor Operating Voltage	3.3V
Raw Voltage input	5V, 2A power source
Maximum current through each I/O pin	16mA
Maximum total current drawn from all I/O pins	54mA
Flash Memory (Operating System)	16Gbytes SSD memory card
Internal RAM	1Gbytes DDR2
Clock Frequency	1.2GHz
GPU	Dual Core Video Core IV® Multimedia Co-Processor. Provides Open GLES 2.0, hardware-accelerated Open VG, and 1080p30 H.264 high- profile decode. Capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure.
Ethernet	10/100 Ethernet
Wireless Connectivity	BCM43143 (802.11 b/g/n Wireless LAN and Bluetooth 4.1)
Operating Temperature	-40ºC to +85ºC



Board Connectors

Name	Description
Ethernet	Base T Ethernet Socket
USB	2.0 (Four sockets)
Audio Output	3.5mm Jack and HDMI
Video output	HDMI
Camera Connector	15-pin MIPI Camera Serial Interface (CSI-2)
Display Connector	Display Serial Interface (DSI) 15 way flat flex cable connector with two data lanes and a clock lane.
Memory Card Slot	Push/Pull Micro SDIO



Similar Boards

RASPBERRY PI – 2, RASPBERRY PI – 1, RASPBERRY PI – ZERO, RASPBERRY PI – 2 B+



Other Development Boards

INTEL GALILEO, INTEL EDISON, ESP32, ARDUINO DUE.



Where RASPBERRY PI 3 is Used?

RASPBERRY PI platform is most used after ADRUINO. Although overall applications of PI are less it is most preferred when developing advanced applications. Also the RASPBERRY PI is an open source platform where one can get a lot of related information so you can customize the system depending on the need.

Here are few examples where RASPBERRY PI 3 is chosen over other microcontrollers and development boards:

1. Where the system processing is huge. Most ARDUINO boards all have clock speed of less than 100MHz, so they can perform functions limited to their capabilities. They cannot process high end programs for applications like Weather Station, Cloud server, gaming console etc. With 1.2GHz clock speed and 1 GB RAM RASPBERRY PI can perform all those advanced functions.

2. Where wireless connectivity is needed. RASPBERRY PI 3 has wireless LAN and Bluetooth facility by which you can setup WIFI HOTSPOT for internet connectivity. For Internet of Things this feature is best suited.

3. RASPBERRY PI had dedicated port for connecting touch LCD display which is a feature that completely omits the need of monitor.

4. RASPBERRY PI also has dedicated camera port so one can connect camera without any hassle to the PI board.

5. RASPBERRY PI also has PWM outputs for application use.

There are many other features like HD steaming which further promote the use of RASPBERRY PI.



How to Use RASPBERRY PI 3

As mentioned earlier PI is simply a COMPUTER ON A SINGLE BOARD so it cannot be used like ARDUINO development boards. For the PI to start working we need to first install OPERATING SYSTEM. This feature is similar to our PC. The PI has dedicated OS for it; any other OS will not work.

We will discuss the programming of PI in step by step below.

1. Take the 16GB micro SD card and dedicate it specifically for PI OS.
2. Choose and Download OS software. [https://www.raspberrypi.org/downloads/] (‘NOOBS’ recommended for beginners )
3. Format the SD card and install OS on to the SD memory card using convenient methods.
4. Take the SD card after OS installation and insert it in PI board.
5. Connect monitor, keyboard and mouse
6. Power the board with micro USB connector
7. Once the power is tuned ON the PI will run on the OS installed in the memory card and will start from boot.
8. Once all drivers are checked the PI will ask for authorization, this is set by default and can be changed.
9. After authorization you will reach desktop where all application program development starts.



On the PI you can download application programs required for your use and can directly install as you do for your PC. After that you can work on developing required program and get the PI run the developed programs.



Applications

• Hobby projects.
• Low cost PC/tablet/laptop
• IoT applications
• Media center
• Robotics
• Industrial/Home automation
• Server/cloud server
• Print server
• Security monitoring
• Web camera
• Gaming
• Wireless access point
• Environmental sensing/monitoring (e.g. WEATHER STATION)
