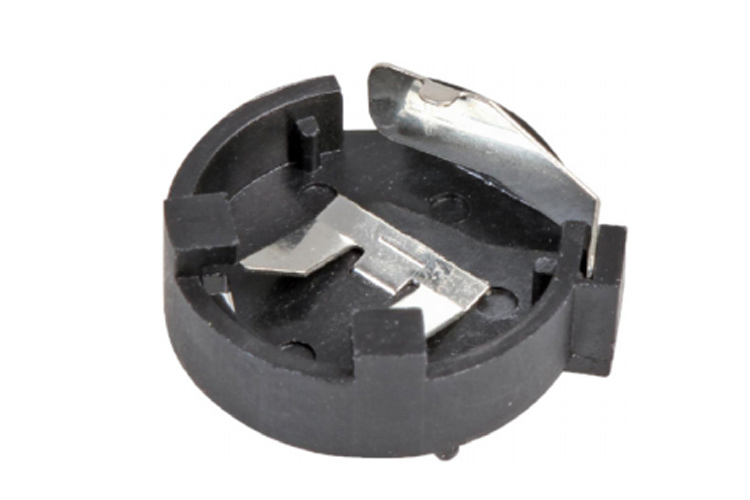

CR1225 Coin Cell Battery Holder

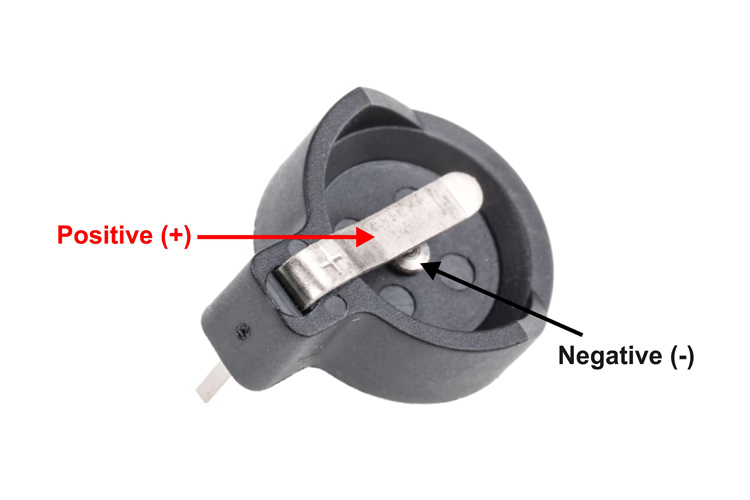

The CR1225 battery Holder is a small and compact device designed to be used as RTC backup and SRAM backup for GPS units. This holder holds the battery in place with friction. The outside contact housing connects to the positive terminal of the battery and the bottom terminal is connected to the negative side of the battery.

Features of CR1225 Coin Cell Battery Holder

• Material : Housing: PBT+30%GF, UL94V0 Black colour
• Contact: : Phosphor Bronze 0.2mm thick Tin plated over nickel
• Current Rating : 2A (AC/DC)
• Voltage Rating : 500V (AC/DC)
• Contract Resistance : 30mΩ
• Insulation Resistance : 500MΩ
• Low Profile
• Female Contact Gender
• 100% Tin over Nickel Plated Finishing
• 260°C for 10 seconds
• Temperature Range : -55°C to +85°C
• Humidity : 40°C and 90% to 95% RH for 96 hrs.

Alternative

S8201-46R, 10592

Applications

Portable Devices

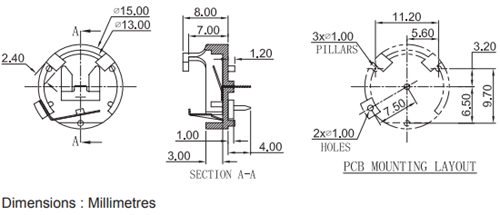

2D Model and Dimensions
