CD4035 Parallel In/Parallel Out Shift Register

CD4035B is a four-stage clocked signal serial register with provision for synchronous Parallel inputs to each stage and Serial inputs to the first stage via JK logic. The CD4035 shift register is commonly used in Counters, Registers and Control circuits.

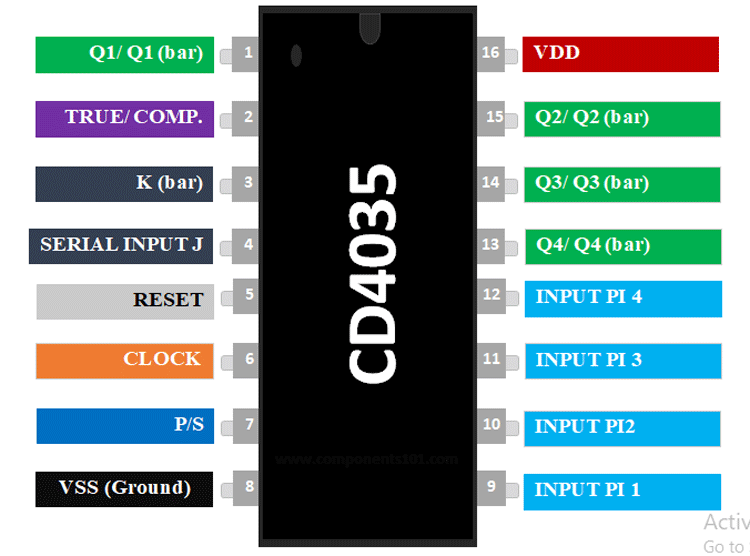

Pin Description of CD4035:

Features of CD4035:

• Dual 4-bit,  Parallel In – Parallel out Shift register
• Operating Voltage: 3V to 18V
• High speed: 12 MHz (Typ.) at VDD = 10 V
• Propagation Delay Time: 500 ns
• Operating Temperature Range:- 55 C to + 125 C
• Available in 16-pin PDIP, GDIP, PDSO packages

Note: Complete Technical Details can be found at the CD4035 datasheet give at the end of this page.

Alternatives shift Registers:

Where to use CD4035 IC

The CD4035 has two 4-bit Parallel In – Parallel Out Shift Register. Meaning it can receive (input) data-parallel and control 4 output pins in parallel. This comes in very handy where does not have enough GPIO pins on our MCU/MPU to control the required number of outputs. It is often used in projects where relatively a large number of LEDs have to be controlled through the Microcontroller. It can also be used to interface LCD screens since they can act as the data bit for the LCDs.

Applications of CD4035:

• Counters, Registers
• Arithmetic-unit registers
• Shift-left — shift right registers
• Serial-to-parallel/parallel-to-serial conversions
• Sequence generation
• Control circuits
• Code conversion

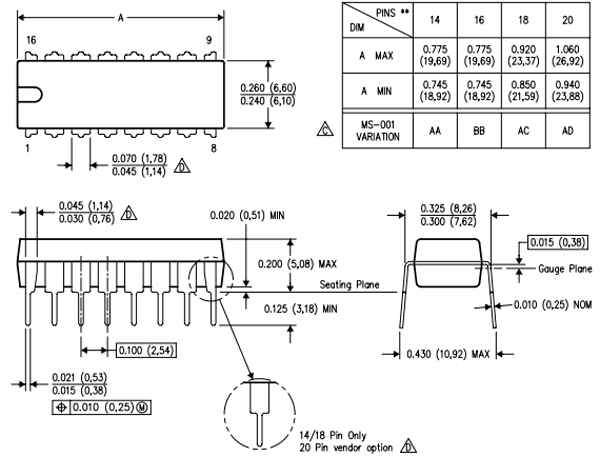

2D Model of CD4035 (PDIP):
