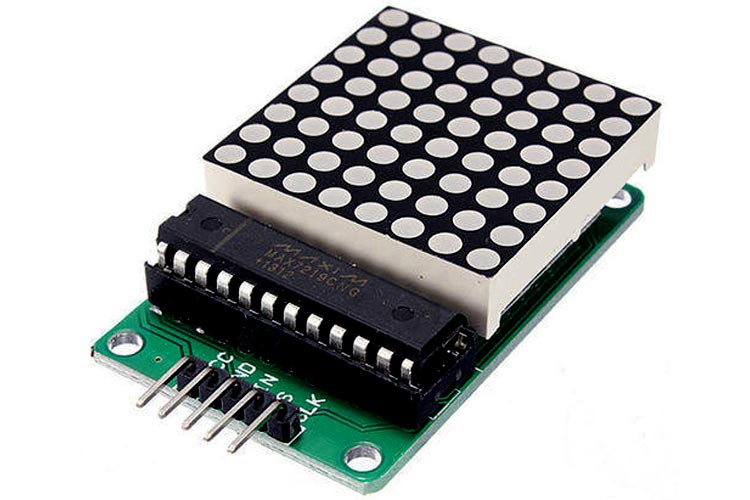

8x8 Dot Matrix Display Module with MAX7219 Driver IC

The 8x8 Dot Matrix Display Module has a MAX7219 driver IC and an 8x8 LED Matrix. All common microcontrollers can be connected to this module by using a 4-wire serial interface. This 8x8 DMD Module requires only 3 I/O lines for driving the display.



Features And Specifications

• Input voltage: 5V
• Maximum Operating Current: 320 mA
• Forward Voltage for Each Segment or LED (Turning ON): 1.5V - 2.0V
• Forward Current for Each Segment or LED (During ON): 10mA - 15mA
• Maximum Operating Temperature: - 25°C to + 60°



Alternatives

MAX7219 Dot Matrix 4 in 1 Display, LTP-305HR

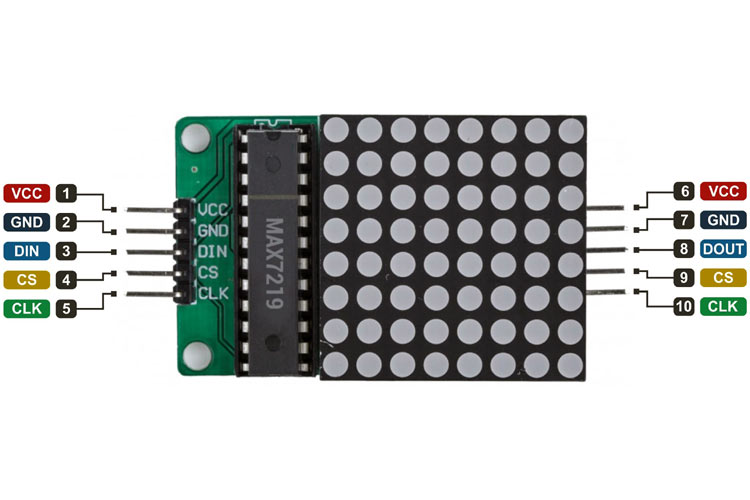

Pin Configuration

The 8x8 Dot Matrix Display Module consists of 10 Pins. There are two pin series on both sides of the module. The pin series alongside the MAX7219 IC Consists of 3 driver pins (DIN, CS, CLK) to drive the display and two power pins (Vcc, GND) for powering the module.



The other one is just on the opposite side of the first one, covered by the LED matrix. Use these pins while connecting multiple 8x8 Dot Matrix Displays in Series with each other. These pins consist of almost the same pins as the first one; the only difference is the DOUT Pin which allows you to connect with the DIN pin of another Module.

Pin Type	Pin Description
Vcc	5V Input Voltage
GND	Ground
CS	Chip Select
CLK	Clock
DIN	Data-In
DOUT	Data Out (Use for Multiple Display Interfacing)

Note: Both sides contain VCC, GND, CS, CLK pins.



Description

The MAX7219 IC is a compact and serial input/output common-cathode display driver. This IC is developed by Maxim Integrated, California. The presence of the MAX7219 IC on the 8x8 Display Module will give you a very easy interfacing experience with any development boards.



The 8x8 Led Matrix modules are available in different modules and each of the modules will have different pin configurations, but they have the same functioning pins.



Connecting an 8x8 Dot Matrix Display Module to an MCU/MPU

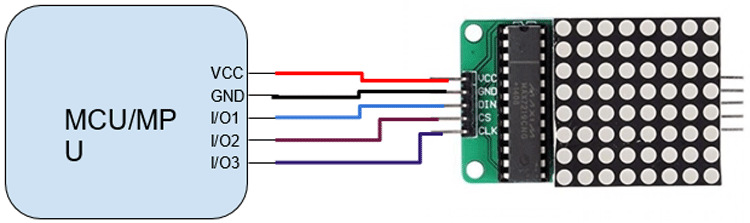

You can easily interface the 8x8 DMD Module with the MCU/MPU. Connect the driver pins (DIN, CS, CLK) to the digital I/O pins of the microcontroller. The following diagram shows the connection of an 8x8 Dot Matrix Display Module.



Connection diagram of 8x8 Dot Matrix Display Module



Applications

The 8x8 Dot Matrix Display Modules can be used as the following:

• Outdoor Display
• Table Clock
• As a Weather Display
• Character Design
• Displaying Results

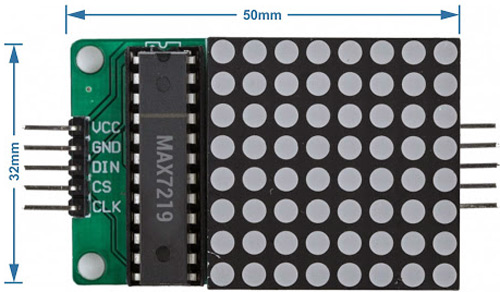

2D Model

The 2D Model of the 8x8 Dot Matrix Display Module with dimensions, which will help to make custom PCBs.
