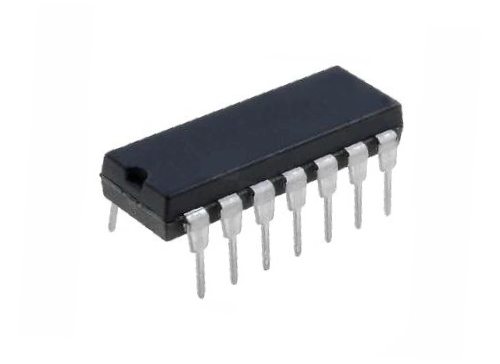

NTE987 Quad Op-Amp

The NTE987 is a Low power Quad Op-Amp that can operate even in low voltages like 3V. It has differential input stage and a wide operating voltage of 3V to 32V.

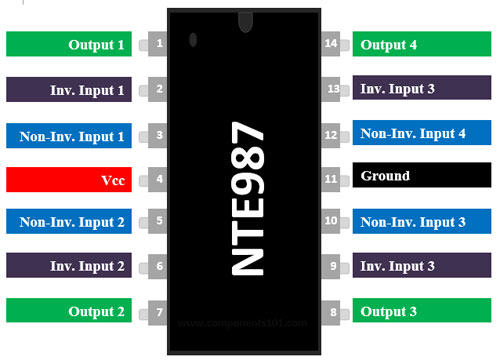

Pin Configuration

NTE987 Quad Op-Amp Specifications

• Four Package Amplifier IC
• Single Supply Voltage: 3V to 32V
• Supply Current: 3mA (max)
• Operates in Negative supply
• Output can also be negative
• Typical Gain: 100dB
• Typical CMRR Value: 70
• Input Bias Current: 0.25uA @ 5V
• Available in DIP-14 and SOIC-14 Package

NTE987 Equivalent

LM324

Brief Description on NTE987

The NTE987 is a Quad package Amplifier IC, meaning it had four Op-Amps inside it. It is a low power Op-Amp that can operate between 3V to 32V with single supply voltage and consumes a maximum of 3mA current while operating. It has a voltage gain of typically 100 and CMRR ratio of 70 as maximum.

The output pins of the op-amp have built in short circuit feature. The minimum input bias current is 0.25uA at 5V and the Input Offset voltage is 7V when operating at 30V. The Op-Amp is a general purpose Op-amp and most of its properties are similar to the LM324 Op-amp which more commonly available and popular.

Applications

• Transducer Amplifiers
• Filter circuits, Voltage followers
• Integrator, Differentiator, Summer, adder, Voltage follower, etc.,
• DC gain blocks
• Comparators (Loop control & regulation)

2D-Model

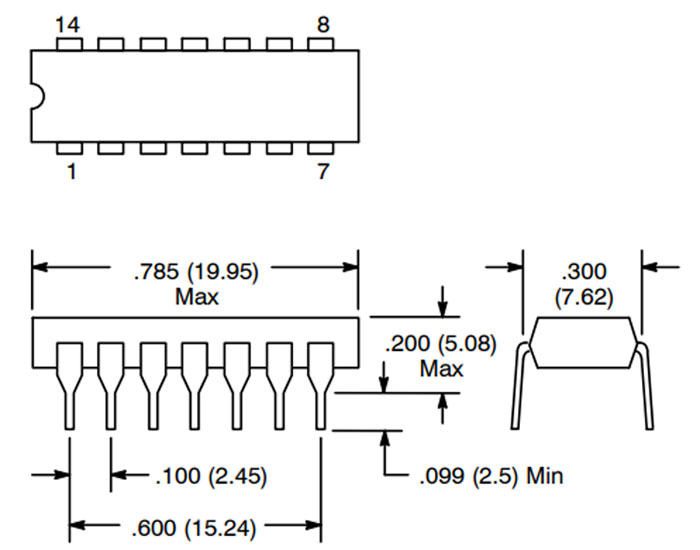

2D dimensions will help you in placing this component at the time of making circuit on perf board or a PCB.
