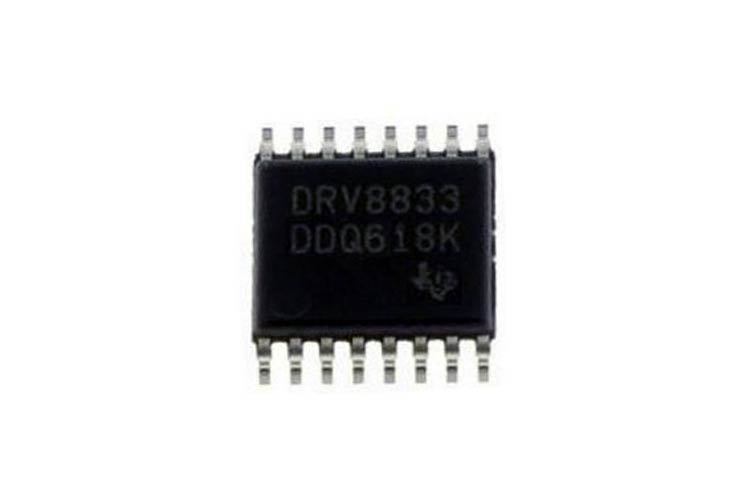

DRV8833 Dual H-Bridge Motor Driver

The DRV8833 is a two-channel H-bridge motor driver that can be used to drive two DC motors or one stepper motor. Each output can supply up to 2A peak current with internal limiting, with overcurrent, overtemperature, short-circuit and undervoltage protection.

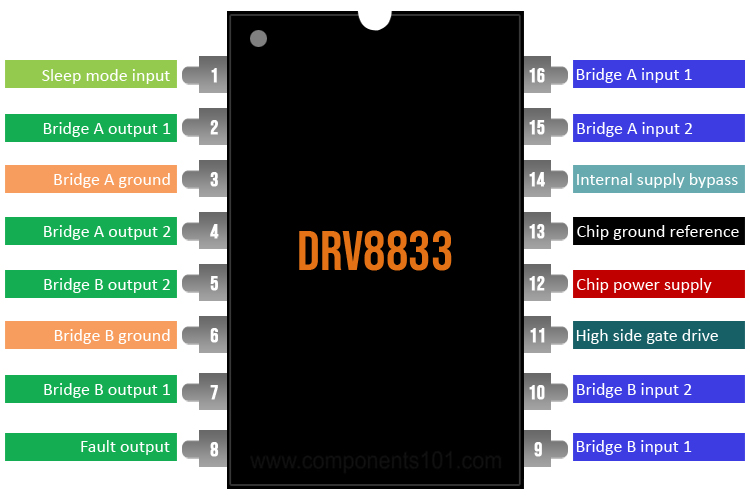

DRV8833 Pinout Configuration

Pin Number	Pin Name	Pin Description
1	SLEEP	Sleep mode input, active high
2	AOUT1	Bridge A output 1
3	AISEN	Bridge A ground/current sense
4	AOUT2	Bridge A output 2
5	BOUT2	Bridge B output 2
6	BISEN	Bridge B ground/current sense
7	BOUT1	Bridge B output 1
8	FAULT	Fault output, active low
9	BIN1	Bridge B input 1
10	BIN2	Bridge B input 2
11	VCP	High side gate drive
12	VM	Chip power supply
13	GND	Chip ground reference
14	VINT	Internal supply bypass
15	AIN2	Bridge A input 2
16	AIN1	Bridge A input 1



Features and Descriptions

• Dual H-bridge current controlled motor driver
• 2A peak output current
• Outputs can be paralleled
• 2.7V to 10.8V supply range
• PWM current regulation



Note: Complete technical details can be found in the DRV8833 datasheet linked at the end of this page.



DRV8833 Equivalents

TB6612

Other Motor Drivers

L6219, L298



How To Use DRV8833

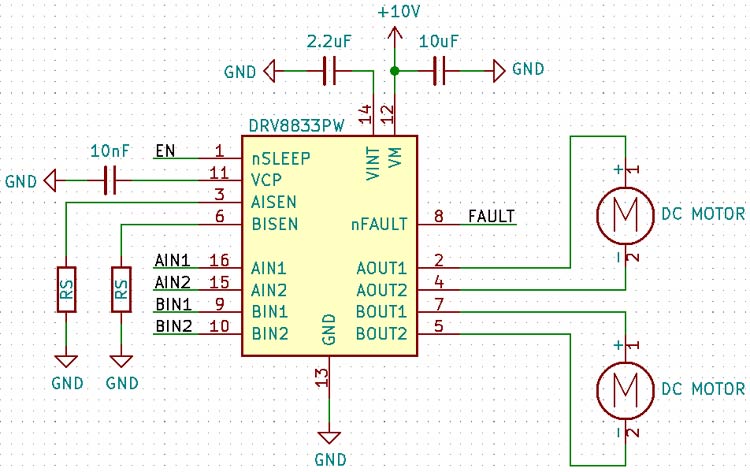

The DRV8833 is a dual channel H-bridge motor driver, that can drive two DC motors or one stepper motor. It can supply up to 2A peak current and has internal overcurrent protection. DRV8833 dual DC motor control circuit diagram shown below,

The motors are controlled using the AIN1/2 and BIN1/2 pins. The speed of the motor cannot be controlled, only the direction can. The table below shows the functions each pin state provides.

	AIN1/BIN1	AIN2/BIN2
Forward	HIGH	LOW
Reverse	LOW	HIGH
Brake/Stop	LOW	LOW
Brake/Stop	HIGH	HIGH

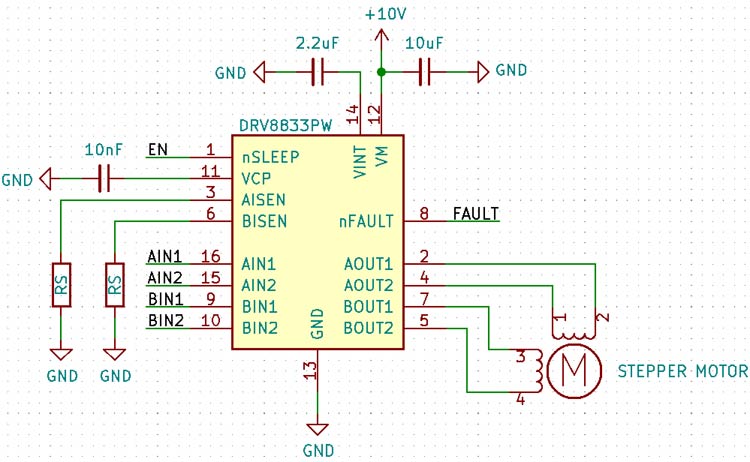

The DRV8833 can also be used to drive stepper motors with the following circuit diagram.



Applications

• Battery powered toys
• POS printers
• Security cameras
• Gaming machines
• Robotics

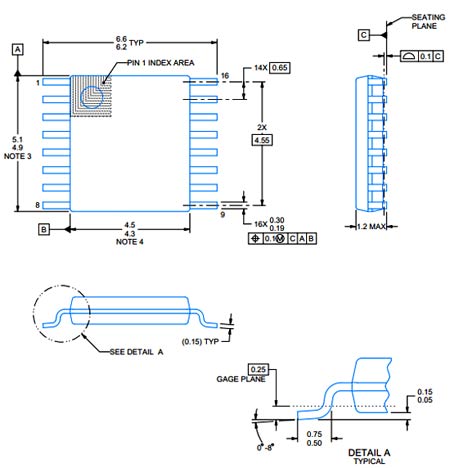

2D Model and Dimensions

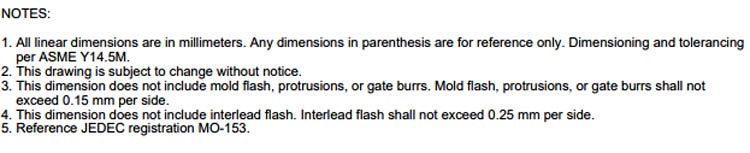

If you are designing a PCB or Perf board with this component then the following picture from the DRV8833 Datasheet will be useful to know its package type and dimensions.
