74LS74 Dual D Flip-Flop

74LS74A flip-flop IC utilizes the Schottky TTL circuitry to produce high-speed D-type flip-flops. Each flip-flop has individual clear and set inputs, and also complementary Q and Q`(bar) outputs.

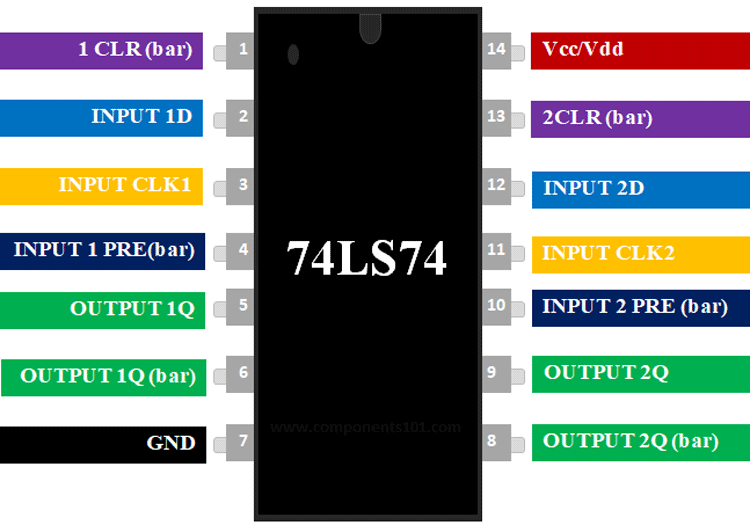

74LS74 Pinout Configuration

Features

• Dual D Flip Flop Package IC
• Operating Voltage: 2V to 15V
• Propagation Delay: 40nS
• Minimum High-Level Input Voltage: 2 V
• Maximum Low-Level Input Voltage: 0.8V
• Operating Temperature: 0 to 70°C
• High-Level Output Current: 8mA
• Available in 14-pin SO-14, SOT42 packages

Note: Complete Technical Details can be found in the 74LS74 datasheet given at the end of this page.

Equivalents

74LVC2G80, HEF40312B

How to use 74LS74

Using a Flip-Flop is pretty straight forward. Simply power the IC using the Vcc and GND pin. As told early each flip-flop operates independently, just connect the input signals 2 and 3 for using the 1st flip-flop and you will get the output at pins 5 and 6. The pin 3 should be provided with a clock source normally a PWM signal from an MCU or 555 timers is used. The pin can be used to clear the data and reset the flip flop by making it high. The complete working of the Flip flop can be understood by taking at the function table below. The symbol “X” indicates don’t care and the up-arrow indicates the rising edge of the signal.

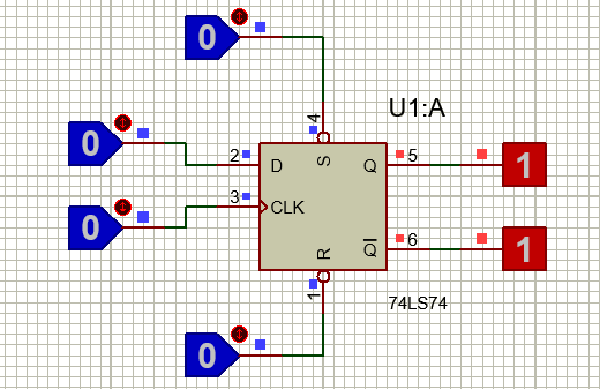

You can also simulate the IC to check if it would work as desired. Here I have used logic state and logic bits to view if the IC functions as it is supposed to, but you can replace them with actual circuitry of your application to check if it would suit your need. The gif file shown below can be verified with the truth table above to make sure that the IC works as desired.

Applications

• Used as Shift Registers
• Memory/Control Registers
• Buffer Circuits
• Sampling Circuits
• Latching devices

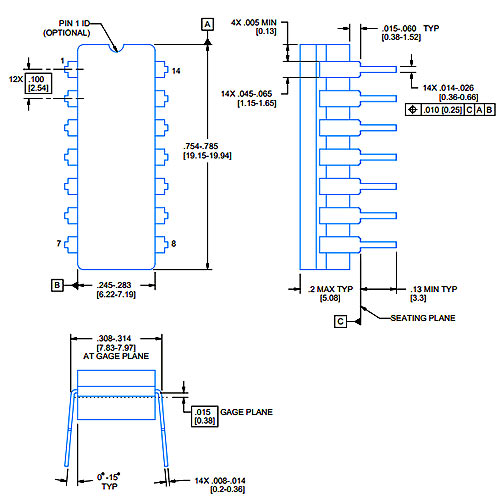

2D Model and Dimensions

Dimensions for the 74LS74 IC is given below. These dimensions are for the CDIP package. If you are using different package IC, please refer to the 74LS74 datasheet.
